What Is a Machine Vision System?

A machine vision system captures visual information from a manufacturing process and analyzes it automatically. It can determine whether a part is present, identify its position, verify correct assembly, measure dimensions, read a code, or detect visible defects.

The result is then sent to a robot, PLC, machine controller, or quality management system. Depending on the application, the system may guide a robot to a part, trigger the rejection of a defective product, or document inspection data for traceability.

A camera alone is not a complete vision solution. A reliable system normally combines image acquisition, optics, lighting, processing hardware, software, and communication interfaces. These components must work together to produce repeatable results under real production conditions.

The first question should therefore not be:

“Which camera should I buy?”

It should be:

“What information must the system detect reliably?”

A compact sensor may be sufficient for a simple presence check. A complex inspection task involving multiple product variants, small defects, or spatial positioning may require a modular 2D or 3D solution.

What Components Make Up a Vision System?

The performance of a machine vision application depends on more than camera resolution. The lens, lighting, software, processing unit, and communication interfaces must all match the inspection task.

A high-resolution camera will not deliver reliable inspection results if the lens does not provide the correct field of view or if uncontrolled ambient light hides the feature being inspected.

Lighting is often one of the most underestimated parts of the application. Reflective metals, transparent plastics, dark surfaces, embossed details, and fine scratches may require entirely different illumination methods. The goal is not simply to make the part brighter. The lighting must create a stable contrast between the relevant feature and its background.

For this reason, cameras, lenses, lighting, software, and integration should be evaluated as one complete system rather than as separate products.

Vision Sensor or Modular Vision System?

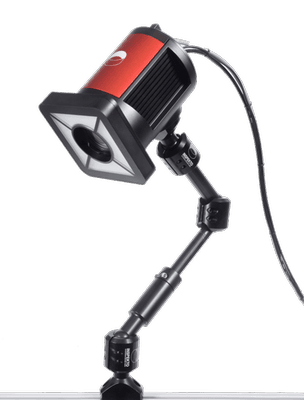

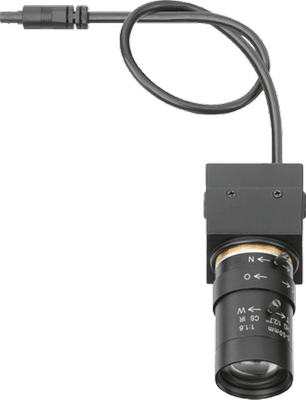

Not every application requires a complex, PC-based setup. For clearly defined inspection tasks, compact vision sensors may provide a faster and more economical solution.

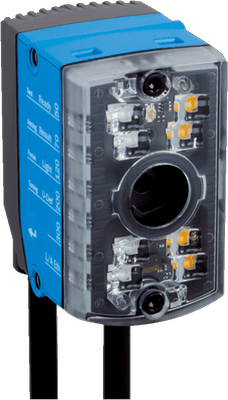

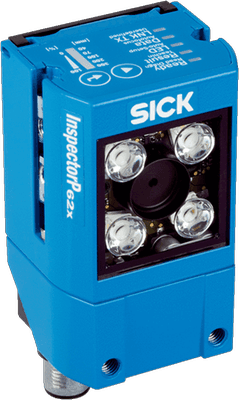

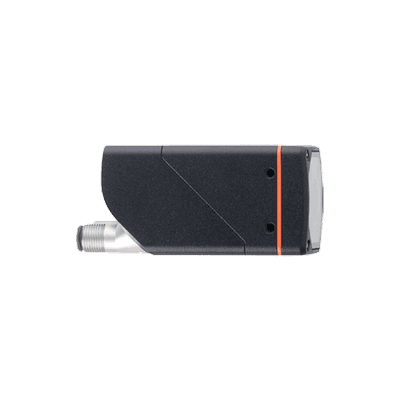

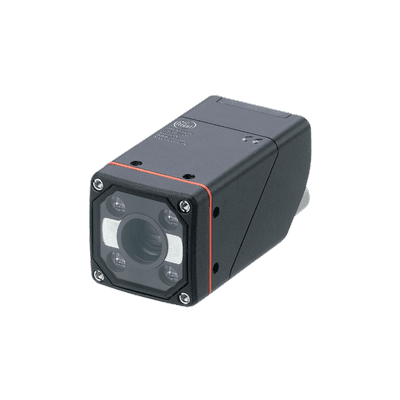

A vision sensor typically combines image acquisition, processing, software, and sometimes lighting in one compact device. It is often used for presence checks, position detection, assembly verification, identification, or basic defect inspection.

Modular systems use separately selected cameras, lenses, lighting, controllers, and software. This architecture requires more planning but provides greater flexibility for complex inspections, multiple cameras, custom optics, higher processing demands, or future expansion.

Smart cameras and integrated sensors can reduce installation effort because several components are combined in one unit. PC-based systems provide more freedom but require additional hardware, integration, and maintenance.

A compact device is often the right choice when the inspection is clearly defined and unlikely to change. A modular setup may be the better investment when product variants, inspection requirements, or production capacity are expected to grow.

Which Vision System Is Right for Your Application?

The correct system is not determined by the highest resolution or the newest technology. It depends on what must be detected, how quickly the process runs, how much the part can vary, and how the result will be used.

The following table provides an initial orientation:

This table does not replace technical application testing, but it helps eliminate unsuitable product categories early in the buying process.

For example, a company that only needs to verify the presence of a label usually does not require a complex 3D setup. A simple 2D camera may not be sufficient, however, when a robot must locate randomly oriented parts at different heights inside a container.

The more precisely the inspection objective is defined, the easier it becomes to compare products, estimate integration effort, and request a useful quote.

2D or 3D Machine Vision: What Is the Difference?

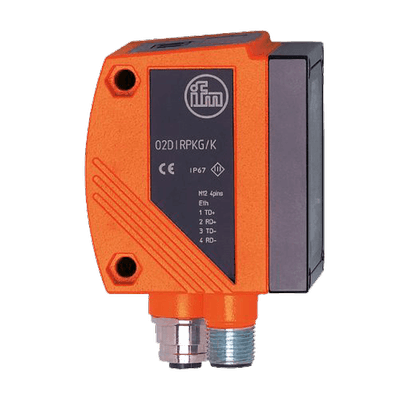

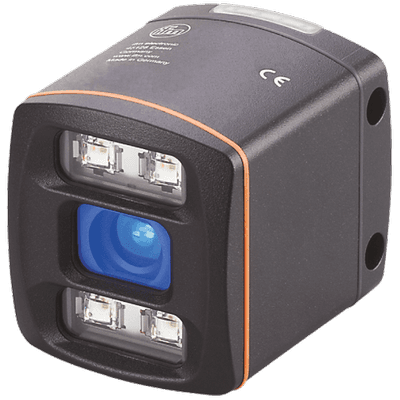

A 2D system evaluates a flat image. It can detect contours, colors, patterns, codes, and positions within the image plane. This is sufficient for many inspection, identification, measurement, and alignment tasks.

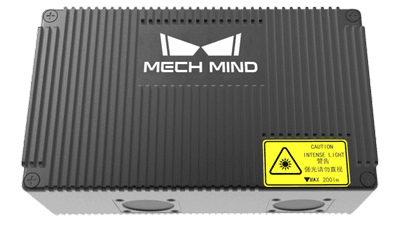

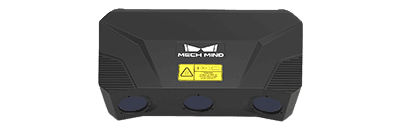

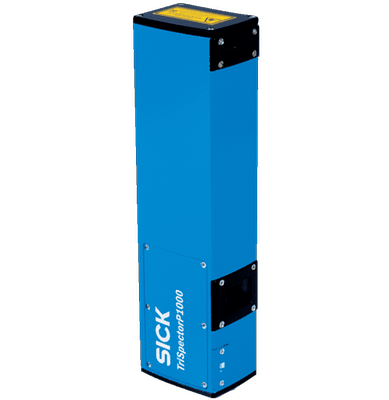

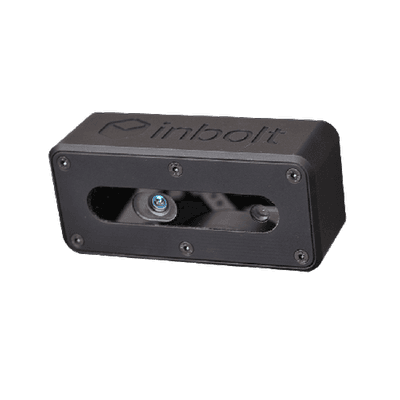

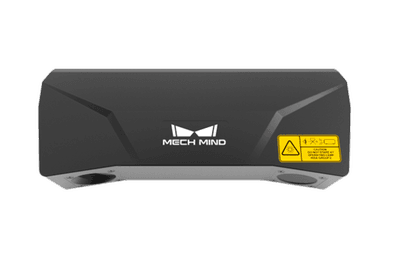

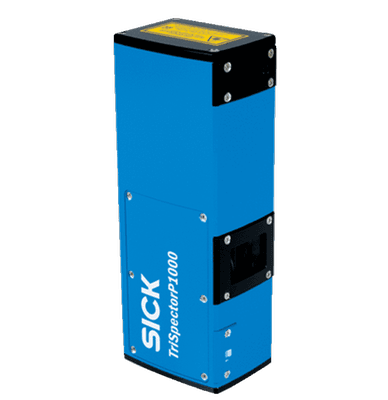

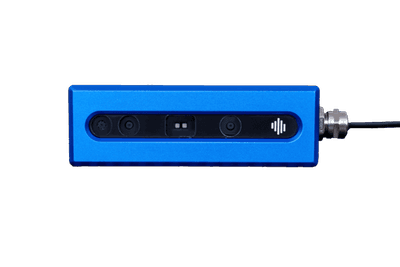

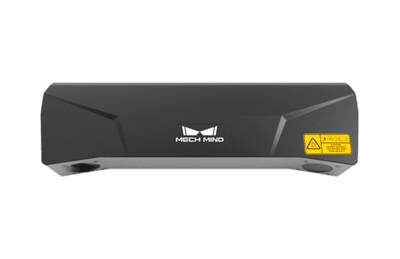

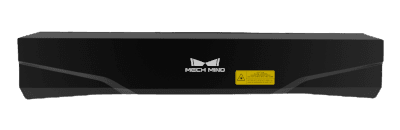

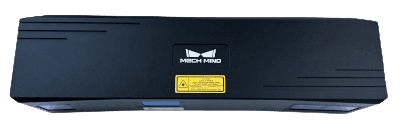

3D machine vision captures additional depth or height information. It can determine spatial shape, volume, surface profile, distance, and three-dimensional orientation. This is particularly important when parts are positioned at different heights or when a robot requires a spatial pick point.

2D systems are widely used to inspect, identify, and guide parts through production. 3D systems are particularly useful for precision measurement, process control, inspection, and robot guidance that require depth information.

A 3D system is not automatically the better choice. When every relevant feature can be detected reliably in a flat image, a 2D solution is often easier to integrate, faster to process, and more cost-effective.

Machine Vision for Robot Guidance

Robot vision systems provide robots with information about the actual location and orientation of a part. Instead of moving exclusively to fixed programmed coordinates, the robot can adjust its path based on visual data.

Typical applications include:

• Pick and place

• Machine tending

• Bin picking

• Palletizing and depalletizing

• Assembly

• Part feeding

• Sorting

• Inspection during handling

In a basic application, the camera may identify the X and Y position of a part on a conveyor. The robot then corrects its pick position accordingly.

More advanced systems generate three-dimensional coordinates and identify possible gripping points for randomly arranged parts. The software may also evaluate whether a part is accessible, correctly oriented, or suitable for picking.

Reliable robotic vision requires more than a clear image. The camera coordinate system must be calibrated to the robot coordinate system, and the software must transfer usable position data to the robot controller.

Compatibility is therefore an important purchasing criterion. Before selecting a system, buyers should verify supported robot brands, communication protocols, calibration tools, coordinate transformations, and available software interfaces.

Vision Systems for Quality Inspection and Process Control

Automated vision inspection systems inspect products directly during manufacturing. They can identify defects, verify assembly completeness, measure critical dimensions, and compare products with predefined quality criteria.

Common inspection tasks include:

• Presence and completeness checks

• Surface inspection

• Dimensional measurement

• Position and orientation detection

• Color inspection

• Optical character recognition

• Barcode and Data Matrix reading

• Sorting and classification

• Assembly verification

• Process monitoring

Machine vision can inspect parts at production speed and immediately return the result to the process. A defective part may be rejected, a robot position corrected, or a machine parameter adjusted before additional defective products are produced.

Typical applications include defect detection, presence checks, measurement, object location, robotic guidance, assembly verification, and character or code reading.

The system can also store images and measurement data for traceability. This may be relevant when manufacturers need to document quality results by product, batch, serial number, or production order.

A stable inspection process can therefore do more than replace a manual visual check. It can provide feedback to manufacturing, reduce scrap, and help identify process drift before it leads to larger quality problems.

Rule-Based Machine Vision or Artificial Intelligence?

Traditional image processing uses predefined rules and measurable features. The system may search for a contour, compare a dimension with a tolerance, or verify whether a specific color value is within an acceptable range.

This method is highly effective when products and defect criteria are clearly defined. Rule-based inspection is usually transparent, reproducible, and easier to validate for predictable parts.

AI-based image processing can be valuable when products, surfaces, or defect patterns vary significantly. A trained model can learn from example images and classify defects that are difficult to describe using fixed thresholds.

Rule-based systems use programmed thresholds, while AI systems learn from example images and can be more tolerant of natural product variation. Neither approach is universally better, and hybrid systems may combine both methods.

AI does not replace suitable optics, lighting, and camera positioning. A trained model still requires stable image quality. If a relevant feature is not visible in the captured image, even advanced software cannot evaluate it reliably.

The decision should therefore be based on the inspection challenge rather than on which technology appears more advanced.

What Should You Consider Before Buying?

Many buyers initially focus on megapixels and product price. In practice, the quality of an industrial vision system depends on several connected factors.

Inspection Feature and Defect Size

Begin by defining the smallest feature or defect that must be detected reliably.

A general presence check has very different requirements from detecting a fine scratch, measuring a narrow gap, or identifying a small assembly error. The feature should be evaluated under realistic production conditions rather than only on a single ideal sample.

Field of View and Working Distance

The field of view is the complete area that must be captured in the image. The working distance is the available distance between the camera and the part.

Together, these values influence camera resolution, sensor size, lens selection, depth of field, and the required mounting position.

A common planning error is selecting a camera before confirming whether it can physically be mounted at the required distance.

Resolution and Measurement Accuracy

More pixels do not automatically produce a better result. The important question is how many pixels represent the smallest relevant feature.

A system intended to measure dimensions must usually provide more image detail and more stable calibration than a system that only confirms whether a large component is present.

Cycle Time and Image Acquisition

High-speed conveyors and short cycle times require appropriate exposure times, frame rates, triggering, and processing performance.

Motion blur can make images unusable even when high-resolution machine vision cameras are installed. Lighting intensity, shutter speed, and synchronization with the production process must therefore be considered together.

Surface and Lighting Conditions

Material, color, texture, reflectivity, and transparency directly influence the lighting concept.

Glossy metal may create reflections that hide a defect. Transparent plastic may require backlighting. Embossed or engraved features may become visible only when illuminated from a specific angle.

Testing different lighting methods is often more valuable than simply selecting a camera with additional resolution.

Production Environment

Dust, moisture, vibration, temperature changes, cleaning processes, and ambient light can affect system performance.

Industrial applications may require protected enclosures, suitable IP ratings, vibration-resistant mounts, industrial connectors, or optical filters. The selected equipment must remain stable throughout the expected operating conditions.

Interfaces and Software

The vision solution must communicate with the rest of the automation system.

Before purchasing, verify which interfaces and protocols are required for:

• Robot controllers

• PLCs

• Industrial PCs

• Fieldbus networks

• Manufacturing execution systems

• Databases

• Quality management systems

The software should also provide the inspection tools, user management, image storage, reporting, and product changeover functions required by the application.

What Information Should You Prepare for a Consultation?

A useful consultation begins with a clearly defined application rather than a specific camera model.

The more information you can provide, the easier it becomes to compare suitable systems and estimate the required engineering effort.

Images and physical samples of acceptable and defective parts are particularly valuable.

For quality inspection, representative samples help determine whether the defect is consistently visible and whether different defect types can be separated from normal product variation.

For robot guidance, useful information also includes robot brand, controller, gripping concept, required positional accuracy, part presentation, and the available camera mounting location.

Common Mistakes When Selecting a Vision System

A technically powerful system can still deliver unstable results when the application has not been planned correctly.

Common mistakes include:

• Selecting products based only on resolution

• Failing to define the smallest relevant defect

• Underestimating lighting requirements

• Ignoring ambient light changes

• Choosing an unsuitable working distance

• Overlooking motion blur

• Failing to calibrate robot-guidance applications correctly

• Selecting incompatible communication interfaces

• Using too few representative test images

• Ignoring future product variants

• Underestimating setup and software integration

One of the most critical misconceptions is that software can correct every optical problem later.

If a defect is not clearly visible in the captured image, software can only evaluate it to a limited degree. Stable image acquisition must therefore be established before inspection algorithms are optimized.

Another common mistake is using only ideal parts during system testing. Real production may include acceptable variation in color, position, surface texture, or presentation. A reliable system must distinguish this normal variation from actual defects.

How Much Does a Machine Vision System Cost?

The total investment depends heavily on the application.

A compact sensor used for a presence check requires fewer components and less engineering than a multi-camera inspection station or a 3D solution for robot guidance.

Cost factors may include:

• Camera type and resolution

• 2D or 3D technology

• Lens and optical accessories

• Lighting

• Processing hardware

• Software and licenses

• Calibration

• Communication interfaces

• Mounting and protective equipment

• Programming and integration

• Validation and documentation

• Product changeover requirements

The hardware price represents only part of the overall cost. A lower-priced system may become expensive if unstable lighting causes false rejects, operators must frequently adjust settings, or production stops because the inspection is unreliable.

The more useful question is therefore not simply:

“How much does the camera cost?”

It is:

“What total solution can inspect the required feature reliably at the planned cycle time?”

The economic value may come from reducing manual inspection, preventing defective products from reaching later production stages, lowering scrap, improving traceability, or guiding robots without precisely fixed part presentation.

Frequently Asked Questions About Machine Vision Systems

What Is the Difference Between a Camera and a Vision System?

A camera captures images. A vision system combines the camera with optics, lighting, processing, software, and communication interfaces so the images can be analyzed automatically and the result transferred to a robot or machine.

When Is a Vision Sensor Sufficient?

A vision sensor is often suitable for clearly defined tasks such as presence checks, basic position detection, code reading, and assembly verification.

A modular system is usually more appropriate when the application requires multiple cameras, custom optics, complex algorithms, or future expansion.

Do I Need a 2D or 3D System?

A 2D system is generally sufficient when every relevant feature is visible in a flat image.

A 3D system is needed when the application requires height, depth, volume, surface profile, or spatial orientation.

Can Machine Vision Work with Robots from Different Manufacturers?

Many systems can communicate with robots from different manufacturers through supported software packages, standard interfaces, or industrial communication protocols.

Before purchasing, verify robot compatibility, calibration functions, communication methods, and coordinate conversion capabilities.

When Should AI Be Used for Visual Inspection?

AI can be useful when defect patterns or acceptable product variations are difficult to describe using fixed rules.

For clearly measurable contours, dimensions, or codes, traditional rule-based inspection may be simpler and easier to validate.

Which Lighting Is Best for Machine Vision?

The correct lighting depends on the part material, surface, geometry, color, and inspection feature.

Ring lights, backlights, diffuse dome lights, directional lighting, structured light, and optical filters create different contrasts. Application testing is usually required to determine the most reliable option.

Can a Vision System Be Expanded Later?

Modular systems can often be expanded with additional cameras, lighting, processing capacity, or software functions.

All-in-one sensors generally offer fewer hardware expansion options, although software tools and inspection jobs may still be extended.

What Is the Difference Between Computer Vision and Machine Vision?

Computer vision is the broader discipline of interpreting visual data with algorithms.

Machine vision applies imaging, processing, and automation technologies to practical industrial tasks such as inspection, measurement, identification, and robot guidance.
