Pick and place with door locks

Automated Sorting of Metal Door Locks with igus Spatial Gantry

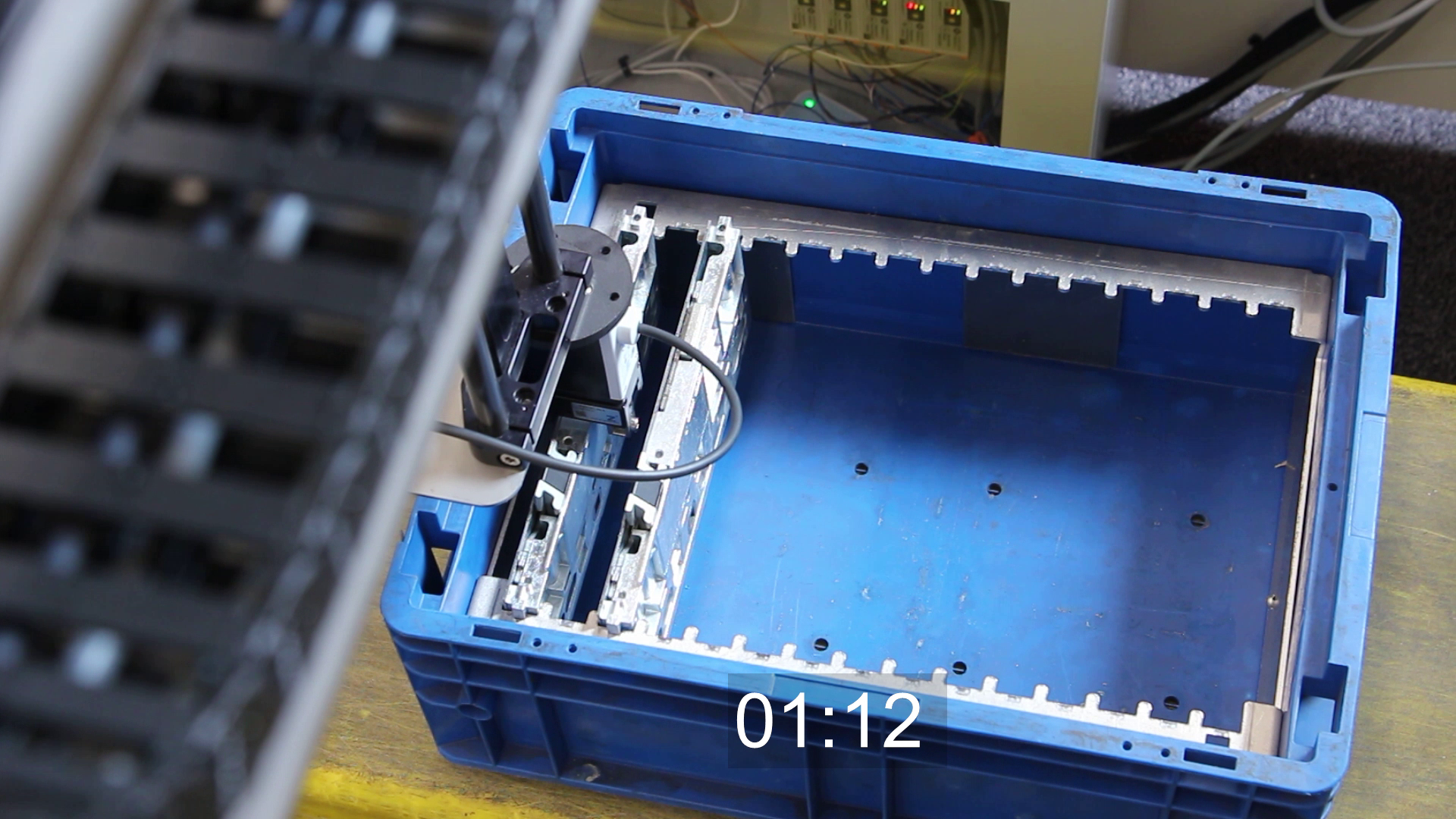

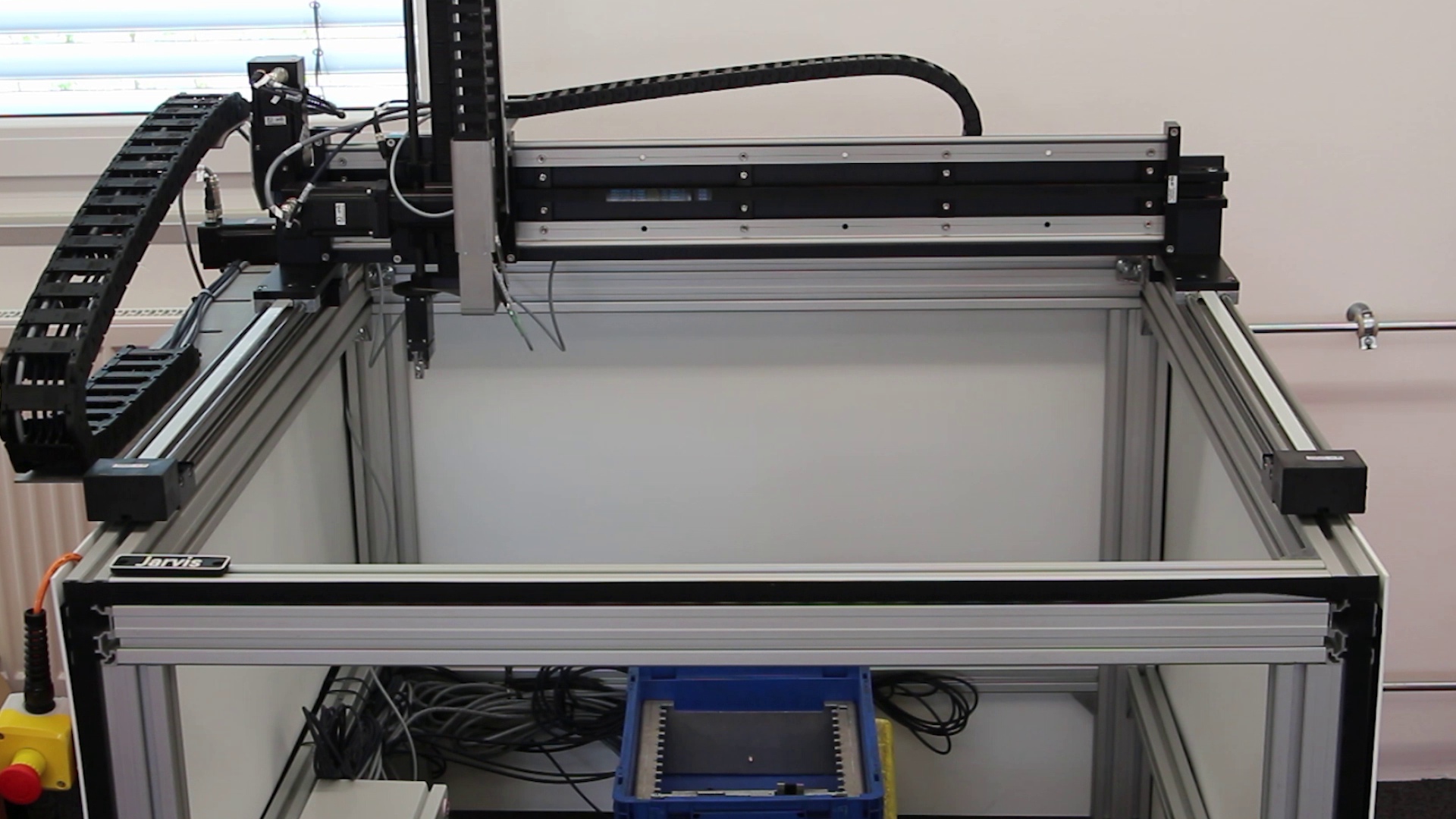

Efficient transport and sorting of metal door locks require precise handling and movement. In this application, an igus spatial gantry automates the process, accurately sorting door locks in and out with a ZIMMER parallel gripper. The gantry provides three degrees of freedom, allowing it to approach all necessary positions in a compact working space of 400x400x150 mm. This solution reduces manual effort and enhances process reliability.

What is the Application?

The system automates sorting and transport of metal door locks. With a payload capacity of 2.5 kg and a parallel gripper, it ensures stable and controlled handling of components.

What are the Advantages of the Solution?

• Precise Sorting: Targets positions with accuracy, reducing sorting errors.

• Compact Design: Small gantry footprint fits into limited workspace layouts.

• Versatility: Compatible with various end effectors and camera systems.

What are the Advantages of the Robot?

The igus spatial gantry improves operations through:

• High Payload Capacity: Handles weights up to 2.5 kg with ease.

• Reliable Gripping: The ZIMMER gripper provides a force of 360 N for secure handling.

• Customizability: Easily equipped for diverse tasks with modular components.

Streamlining Metal Lock Handling with Automation

This automated sorting solution optimizes workflows, offering reliable performance and precision handling of door locks. The compact yet powerful igus spatial gantry is ideal for small-scale applications, ensuring efficiency, versatility, and reduced operational costs in manufacturing environments.
